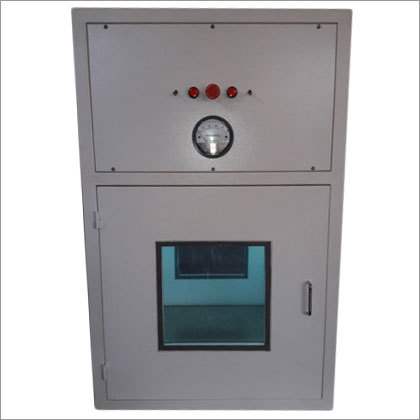

Clean Room Pass Box

Clean Room Pass Box
Clean Room Pass Box
Product Code : UB 14
Brand Name : ULTRA BIOTECH
Trade Information
  • Main Domestic Market
  • South India, Karnataka
Product Description

We are a reputed organization in this domain, engaged in offering excellent quality Clean Room Pass Box. Our provided box is designed to allow material transfer through controlled environment without much personnel movement. It is highly demanded in the global market due to its unmatched functionality and easy operations. In addition, this Clean Room Pass Box is manufactured using quality assured materials with the help of ultra modern technology in accordance with industry norms.

Features:

  • Excellent performance
  • Less energy consumption
  • Space savvy design



Is available in powder coated Mild Steel, SS 304 / SS 316/ SS 316L or a combination of both.

General Specifications

  • Two Stage filtration
  • EU6 – Prefilter (95% down to 5 micron)
  • EU14 - HEPA Filter – Supply (99.999% down to 0.3 micron)
  • Statically & Dynamically balanced Motor-blower with suspension arrangement to reduce noise level
  • Doors with double walled flush glass view panels
  • SS Handles & SS hinges
  • Internal covings for easy cleaning
  • Electro-magnetic Interlocking
  • Indicator on either side
  • Emergency Switch on one side
  • Differential Pressure Gauge: 1 No
  • On / Off Switch for Motor
  • DOP Test Port

 Operating Conditions

  • A wide range of configurations to suit any application:

  • Electro-magnetic Interlocking system

  • U. V. Light with Hour Meter with interlocking arrangement to put-off U.V. Light if either door opens

  • Floor mounted construction with three side wall structure & Door Drop Seal

  • Support Stand to mount the pass box

  • Flange for sealing the gap between the pass box and the cleanroom wall

Standard Models

  • Work Area Dimension (L x W x H)
  • 450 x 450 x 450 mm
  • 610 x 610 x 610 mm
  • 900 x 900 x 900 mm
