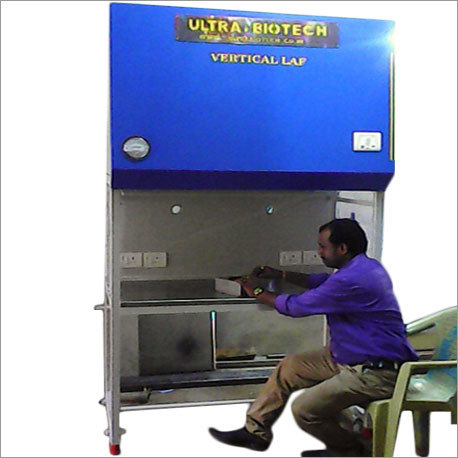

Vertical Air Flow

Vertical Air Flow
Vertical Air Flow
Product Code : UB 16
Brand Name : ULTRA BIOTECH
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

Vertical Air Flow

The Vertical Air Flow is designed to provide a high degree of protection for equipments. In laboratories and production facilities. This is manufactured under the observation of our experienced experts using pristine quality materials and advanced techniques. Our vertical laminar air flow has vertical direction flow and particle retention above 0.5 micron.  Further, this Vertical Air Flow is applications in the medical, pharmaceutical, nuclear-power, and micro- electronic fields.
Features:

  • Excellent functionality
  • Equipped with front acrylic door
  • U. V Lights attachment

Vertical Laminar Flow Cabinets function equally well as horizontal Laminar Flow Cabinets with the laminar air directed vertically downwards onto the working area. The air can leave the working area via holes in the base. Vertical flow cabinets can provide greater operator protection.

Our vertical laminar air flow has vertical direction flow and particle retention above 0.5 micron. These are appreciated for their low noise and versatile usage. These have been designed with latest technology and can also be designed as per the specifications, provided by our clients.

Application: The vertical laminar air flow cabinets are designed to provide a high degree of protection for process products In laboratories and production facilities. Many critical applications in the medical, pharmaceutical, nuclear-power, and micro- electronic fields demand an ultra-clean work environment which is free from biological and particulate contamination.

Operation: Ambient Air is draw in through pre-filter and is introduced in the work zone through the HEPA filter. The average velocity in the work zone is maintained between 0.4 and 0.5 m/s. Air cleanliness in the work zone is better than class 3.5 (100) in accordance with US FED STD 209 E

Construction :
The cabinets are fabricated out of thick board duly sunmica clad or mild steel cabinet duly epoxy coated. The work table is made of thick board which is sunmica clad at top or S. S Table top will be provided as optional accessories. All joints are sealed with silicon sealant. Side panels are provided of thick transparent acrylic sheets. The unit is fitted with pre-filter and is made to pass through highly effective HEPA (High Efficiency Particular Air) filter having efficiency rating as high as 99.997% with hot, DOP, thus retaining all air-borne particles of size : 0.3 micron and larger. Using a dynamic machine, the blower and motor assembly is statically and dynamically balanced. Blowers are mounted on vibration isolation mounts to minimize vibration. The working is illuminated by fluorescent lightings fitted to the unit. Height of the working table provides comfortable “Sit Down” working position for the operation to work on 220/230 volts AC. supply.

SPECIFICATION

Air Velocity

Between 0.4 to 0.5 mls +-20%

HEPA Efficiency Pre-filter

99.997% at 0.3 microns with DOP test Washable with an arrestance up to 90% at 5 microns. Lux 900 - 1300 Lux

Sound Level

Less than 65 dB (A)

Light Intensity Cleanliness

Standard 209 E Class 100

Federal Power Supply

220 V Single phase 50 Hz

Optional:

  • S. S Table Top.
  • U. V Lights attachment
  • Front Acrylic Door
  • Gas/ Vacuum Cock
  • Castor wheels at the Bottom

VERTICAL LAMINAR FLOW

HORIZONTAL LAMINAR FLOW

MODEL

SIZE IN FT

MODEL

SIZE IN FT

VL-2A

2X2

HL-2A

2X2

VL-3B

3X2

HL-3B

3X2

VL-4C

4X2

HL-4C

4X2
